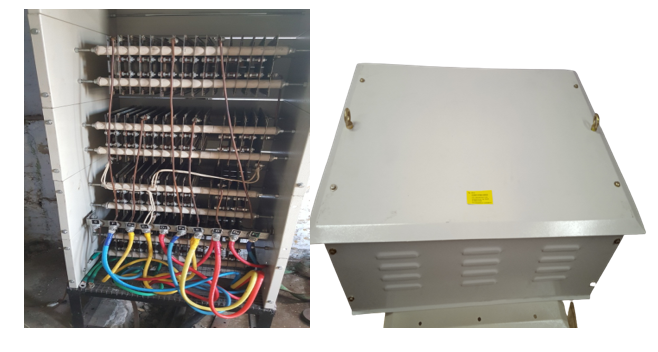

PUNCHED GRID TYPE RESISTANCE BOXES

We at ‘TSS’ Manufacture Stainless Steel (Grade 304) Punched Grid type Resistors, which are designed to meet requirements of both A.C. and D.C. applications for speed Control and Developing Starting Torque. The specifications comply with BSS: 587:1957. The Housing of Resistance Boxes is of Heavy Gauge sheet steel, well ventilated, Natural Air Cooled type.

Application

EOT Cranes, Sugar Mills, Rubber mills, Cement Factories, Mines, Power Plants, Conveyors, etc.

The Resistors are manufactured for current Ratings from 7 Amps to 800 Amps and in 5 minutes, 10 min. 1/2 Hour, and Continuous Rating. This rating is the total time during which Resistors will remain in Circuit over any 15-minute cycle.

Higher ratings are possible by using multiple parallel paths. For Resistance Boxes following data should be submitted along with enquiry.

Motor Details i.e. H.P / K.W, Rotor Voltage (RV) Rotor Amps (RA)?

Number of steps required?

Application of Resistance Box?

Operation through Master Controller / Drum Controller / Push Button?

The Current Rating Chart of SS Punched Grid up to 375 °C rise.

Punched	P G Ohms	Current Rating for Various duty factors (Amps)
Grid Type		25% ED	40% ED	60% ED	100% ED
PG 10	0.010	390	325	280	234
PG 22	0.022	265	220	190	158
PG 32	0.032	220	182	153	131
PG 46	0.046	185	151	130	110
PG 68	0.068	152	126	110	90
PG 100	0.100	125	103	88	74
PG 150	0.150	101	84	72	61
PG 220	0.220	83	70	59	50
PG 300	0.300	72	59	50	43
PG 460	0.460	58	48	40	35
PG 720	0.720	47	39	33	28
PG 1000	1.000	40	33	28	24
PG 1500	1.500	32	27	23	19
PG 2500	2.500	30	24	21	18

*We also Provide Dynamic Braking Resistors for VVVF Drives.
